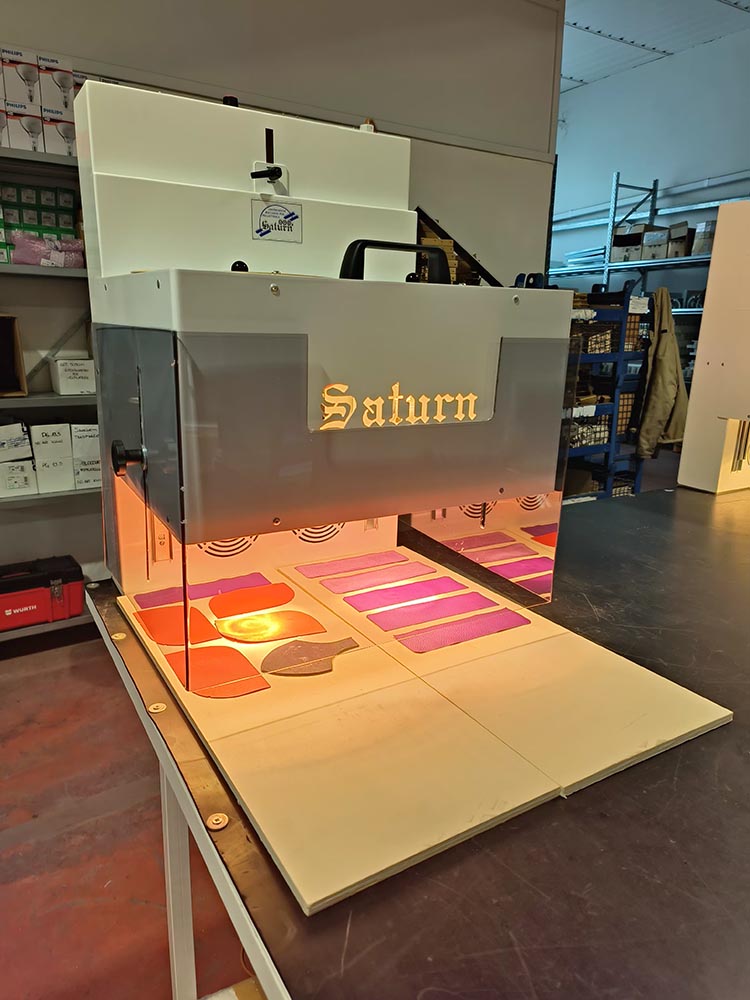

SATURN has created this oven to reactivate glues and dry small details.
Its infrared technology allows you to reactivate the adhesives in a few seconds, the ventilated system allows hot air to circulate.
The oven has been created with a suspended head and is clamped to traditional workbenches. Its suspended bridge shape carries two infrared lamps underneath, capable of irradiating a surface of 500 x 500mm.
The head can be easily adjusted in height from 50 to 250 mm via a central handle.
The infrared power can be adjusted via a potentiometer and the control panel it has two switches that control 2 independent fans.
Fans and infrared can be turned on separately or simultaneously.
Technical features
Power supply 220Volt single-phase
Thermal power 650 watts
Max. 20-200°C Infrared lamp power intensity adjustment
Switches for air recirculation fans Working area 500x 500 mm
height adjustable from 50 up to 250 mm
Overall dimensions: 55 x 65 x 65 cm. Weight: 14 kg
